GEOTelematic® Solutions

The GEOTelematic® Suite of Features and Add-On Modules

Jump To:


Basic GTS Enterprise

Building upon the features and capabilities of the OpenGTS® system, we add many other features to our commercial GEOTelematic® suite to create a customized GPS tracking/telematic solution to fit your specific requirements.

Our Basic GTS Enterprise includes the following additional features:
  • Additional web-interface support (source code included):
    • User "Role" administration support.
    • Custom StatusCode descriptions administration support.
    • "System Administrator" account support providing the ability to create new accounts through the web-interface.
    • "System Information" page which summarizes basic GTS system attributes
  • A "Lite" version of the Event Notification Rules-Engine feature which provides the ability to send notification based on chosen criteria (minor code changes may be necessary to implement additional notification criteria).
  • GTS DB administration utility (binary) with user interface.
  • Configuration Assistant utility (binary) to help with simple configuration changes (Linux platforms required).
  • Additional configured reports:
    • Trip Detail Report - Displays the start time/location, and stop time/location, of various "trips" made within the selected date range.
    • Geozone/Geofence Report - Displays the arrival times and departure times of various travelled geozones/geofences, with the total amount of time spent within each geozone/geofence.
    • Geozone/Geofence Arrival Report - Displays the time spent within each geozone/geofence.
    • Geozone/Geofence Departure Report - Displays the departure time and driving time between each geozone/geofence
    • Ignition Detail/Summary Reports - Displays the time between various Ignition On and Ignition Off events within the selected date range.
    • Digital Input Detail Report - Displays the time between various Digitial Input on and off events within the selected date range.
    • Temperature Monitor Report - (requires temperature sensor support) Displays a report and graphs of temperature values.
    • OBD Fault Code Report - (requires J1939/CANBUS support) Displays engine diagnostice fault codes.
    • OBD Detail Report - (requires J1939/CANBUS support) Displays engine diagnostice detail information.
    • Periodic Service Report - (requires vehicle or GPS-based odometer) Displays periodic maintenance/service information.
    • Distance Traveled Report - (requires vehicle or GPS-based odometer) Displays the distance travelled for various devices within the selected date range.
    • Fuel Usage Summary Report - (requires J1939/CANBUS support) Displays the Engine hours, Total fuel used, Idle hours, Idle fuel used, Work hours, Work fuel used, PTO hours, PTO fuel used, Miles driven, and Fuel economy for devices within the selected date range.
    • User Login Report - Displays the login times for various users within the account.
    • Account Login Report - (System Admin only) Displays the last login times for various accounts within the system.
    • Unassigned Devices Report - (System Admin only, Requires device communication server support) Displays a list of devices which have attempted to send data to the server, but have not yet been assinged to an account/device record.
    • Session Connection Status Report - Displays the wireless data usage estimates for various devices.
  • Additional documentation.
  • Autostartup scripts (on reboot) for Fedora and CentOS.
  • Web-service support for accessing the GTS database and querying report, mapping, and database information in XML format.
  • Outbound SMS gateway support for general email-to-sms services, "Clickatell", "Twilio", "CDYNE", "Multitech" (SMS gateway hardware), and "Kannel",
  • Included device communication server (DCS) support:
    (these DCS modules are included with the basic GTS Enterprise. All other supported DCS modules are priced separately)
    • Sanav GC-101 TCP/UDP-mode protocol (personal tracker)
    • Sanav GX-101 TCP/UDP-mode protocol
    • Sanav GS-818 TCP/UDP-mode protocol
    • Sanav CT-24 TCP/UDP-mode protocol (personal tracker)
    • Astra Telematics devices (AT240, AT110, AT210, AT200 - DCS supported by Astra).
    • CelltracGTS™/Free for Android phones.
    • CelltracGTS™/Pro for Android phones.
    • Aspicore GSM Tracker protocol (cell-phone tracking).
    • TAIP (Trimble ASCII Interface Protocol).
    • Most TK102/TK103 device protocols.
  • Device Communication Server support for "Unassigned Devices" to keep track of incoming communication from remote GPS tracking units that have not yet been assigned to an Account/Device.
  • Purchase includes 30 days of technical/configuration support. (Continued upgrade support, and remote installation, via "ssh", on selected Linux distributions also available for additional fee).
The above list describes the items included with the Basic GTS Enterprise.
The Basic GTS Enterprise installation is required when using any of the additional add-on modules described below, as they utilize the additional features provided by the Basic GTS Enterprise.

See the Feature Comparison chart below for a comparison of the various module features.




Event Notification Rules Engine (ENRE)
(see also the Feature Comparison chart below)

As a separately priced add-on to the above Basic GTS Enterprise, we can provide a full commercial version of our Event Notification Rules Engine (ENRE) which includes the following features:
  • Event Notification Rules-Engine support module (binary) license, which can analyze incoming events and send notifications based on certain pre-defined criteria, device digital-input changes, analog inputs, or other conditions provided by the device.
  • The Event Notification Rules-Engine module can also be used for selecting specific icons to display on a map based on the specific type of event. Such as displaying a specific icon for "ignition on" events, etc.
  • GeoCorridor (route-based) geofencing support.
  • Additional web-interface for creating event rules.
  • Documentation for creating and using event rules.
  • Assistance in setting up various types of 'Rules'.
  • Purchase includes 30 days of technical/configuration support. (Continued upgrade support also available for an additional fee).



Additional Remote Tracking Device Support

The Device Communication Servers listed below are not included with the Basic GTS Enterprise described above, but are available as separately priced binary add-on modules. The price of the specific device communication server (DCS) module depends on the specific device support chosen (please contact us for pricing details). These device communication server (DCS) modules provide the communication link necessesary to receive, parse, and acknowledge (where applicable) data packets from the remote tracking/telematic devices.

We are continually adding new device support. Please contact us regarding any device which you may be using that is not already specified in the list below.
  • AgoraBee Active RFID
    • ChisFleet
    Supported Features:
    • Active RFID
    • Temperature monitoring
    • Geozone monitoring
    • Motion detection
    • Driver identification
    • Ignition interrupt with additional configuration
  • Antx, Inc. [DCS Manual]
    • Messenger (J1708/J1939/CanBus)
    Supported Features:
    • Receive data via UDP
    • UDP acknowledgments
    • End-of-day events
    • Actual vehicle odometer and fuel usage data, etc.
    • Engine fault codes
    • Simulated geozone/geofence arrive/depart events
  • ArkNav
    • R35 Asset Tracker
    Supported Features:
    • Receive data via UDP/TCP
    • UDP/TCP acknowledgments
    • Estimated odometer calculation
    • Simulated geozone/geofence arrive/depart events
  • ATrack Technology Inc. [DCS Manual]
    • AT1(E) (CANBUS)
    • AT5i (CANBUS/1-Wire)
    • AU5i (CANBUS)
    • AX5 (OBDII plug-in)
    • AY5i (WiFi)
    • etc.
    Supported Features:
    • Receive data via UDP/TCP
    • ASCII/Binary mode
    • Acknowledgments
    • Simulated geozone/geofence arrive/depart events
    • Simulated GPIO input events
    • 2 Temperature inputs
    • Analog input
    • Driver ID
  • CalAmp [DCS Manual]
    • LMU-300/400/700/800
    • LMU-900
    • LMU-1100
    • LMU-1200
    • LMU-2000/3000/3030
    • LMU-2100/2600/2700
    • LMU-4200
    • LMU-4520
    • LMU-5000
    • TTU-700/1200/2820
    • etc.
    Supported Features:
    • GPRS/CDMA
    • Receive data via UDP
    • UDP acknowledgments
    • Event-code to Status-code mapping
    • Simulated GPIO input events
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
    • Accumulators (odometer, timers, 1-wire data, etc)
    • RFID/iButton tag support
    • Sending commands to the device via UDP or SMS (with available email to SMS gateway)
    • Garmin FMI interface
    • JPod interface
    • Iridium Satellite Communications (in development)
  • ClearConnex
    • ClearComm
    Supported Features:
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
  • Concox Information Technology Co, Ltd.
    • GT02
    Supported Features:
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
  • Concox Information Technology Co, Ltd.
    • GT06
    Supported Features:
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
  • DeLorme IPC Outbound
    • inReach (personal tracker)
    Supported Features:
    • Satellite-based communications
    • Receive data via HTTP-based server
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
  • Digital Communications Technologies [DCS Manual]
    • Syrus Sy2210 (1-wire)
    • Antares SB (CANBUS)
    Supported Features:
    • Receive data via TCP/UDP (Ascii "REV" record type only)
    • UDP acknowledgments
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
    • Sending commands to the device via UDP or SMS (with available email to SMS gateway)
  • Ewing International Technology Co., Ltd.
    Shenzhen Ewing Science and Technology Co., Ltd.
    • M01
    • SW03
    Supported Features:
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
  • CES Wireless Technologies
    • FA-888
    Supported Features:
    • Receive data via HTTP via WiFi
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
  • Falcom
    • STEPIII
    Supported Features:
    • Receive data via TCP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
  • GenX Mobile
    • GLONASS/GPS v5.0
    Supported Features:
    • Receive data via TCP/UDP
    • Binary packet format
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation, if OBDII odometer not available
    • OBDII support
    • Acceleration/Cornering/Braking detection
    • Analog sensor support
  • GenX Mobile
    • GNX-5P
    • GNX-20
    • etc.
    Supported Features:
    • Receive data via TCP/UDP
    • Binary packet format supported for optimizing data bandwidth usage
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation, if JBus odometer not available
    • J1939/J1708/OBDII support
    • iButton Driver-ID tag support
    • Temperature monotoring
    • Analog sensor support
    • Multiple packet formats supported based on packet-id
  • GlobalSat
  • GlobalStar/Axonn SPOT
    • SPOT (personal tracker)
    Supported Features:
    • Satellite-based simplex communications
    • Receive data via HTTP-based server
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
  • GlobalStar/Axonn SmartONE
    • SmartONE
    Supported Features:
    • Satellite-based simplex communications
    • Receive data via HTTP-based server
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
  • GoSafe G6S/G3S/G3A/G79W [DCS Manual]
    • G3S
    • G6S
    • etc.
    Supported Features:
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
    • OBDII data (some models)
  • GoSafe G777/G787/G797/G71/G717/G7A7 [DCS Manual]
    • Fleet/Personal/Plug'n'Play
    Supported Features:
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
    • OBDII data (some models)
  • GoSafe 9600x/7708x/7709x [DCS Manual]
    • Fleet/Personal/Plug'n'Play
    Supported Features:
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
  • GOTOP TV680/TV690
    • TV680
    • TV690
    Supported Features:
    • Receive data via TCP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
  • GOTOP VT300/VT310
    • VT300
    • VT310
    Supported Features:
    • Same protocol as CT-03
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Simulated GPIO input events
    • Estimated odometer calculation
  • GoTop TLT-2H
    • TLT-2H
    Supported Features:
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Simulated GPIO input events
    • Estimated odometer calculation
  • JoinTech
    • JT600 (personal tracker) (in development)
    Supported Features:
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
  • JVC/Kenwood
    • Kenwood Radios (FleetSync/NEXEDGE)
    Supported Features:
    • FleetSync/NEXEDGE protocols
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation (based on GPS locations)
  • Laipac
    • StarFinder AVL 110
    Supported Features:
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
  • Maestro Wireless
    • MicroTracker MT-01 (in development)
    Supported Features:
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
  • Meitrack MVT
    • Meitrack MVT600 ('AAA' events only)
    • Meitrack MVT380 ('AAA' events only)
    • Meitrack MVT340 ('AAA' events only)
    • Meitrack MVT100 ('AAA' events only)
    • Meitrack MT88 ('AAA' events only)
    • Meitrack MT80 ('AAA' events only)
    • Meitrack T1 ('AAA' events only)
    • Meitrack T3 ('AAA' events only)
    • Meitrack TC68 ('AAA' events only)
    • Meitrack TC68S ('AAA' events only)
    • Meitrack T322 ('AAA'/'CCC' events only)
    Supported Features:
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Simulated GPIO input events
    • Estimated odometer calculation
    • RFID tag support
  • Megastek
    • GMT-368
    Supported Features:
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Simulated GPIO input events
    • Estimated odometer calculation
  • Nimble Wireless Inc.
    • Toucan
    Supported Features:
    • CDMA
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
  • Pointer Telocation Ltd.
    • Cello-IQ (in development)
    Supported Features:
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Simulated GPIO input events
    • Estimated odometer calculation
  • Portman Security
    • GT3000
    Supported Features:
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Simulated GPIO input events
    • Estimated odometer calculation
  • Positioning Universal
    • MOA protocol devices
    Supported Features:
    • Receive data via UDP
    • Simulated geozone/geofence arrive/depart events
    • Simulated GPIO input events
    • Estimated odometer calculation
    • OBDII/CANBUS data
  • Meitrack Meiligao VT / RedView CT-03 [DCS Manual]
    • Meiligao Series VT400 (when using the RedView CT-03 protocol)
    • Meiligao Series VT310 (when using the RedView CT-03 protocol)
    • Meiligao Series VT300 (when using the RedView CT-03 protocol)
    • Meiligao Series GT60 (when using the RedView CT-03 protocol)
    • Meiligao Series GT30i (when using the RedView CT-03 protocol)
    • Oner Electronics Technology Limited PT01, PT03, CT01, CT02, CT03
    • Gotop VT300
    • Gotop VT310
    • RedView CT-03
    Supported Features:
    • Receive data via TCP/UDP
    • Meitrack VT310 analog sensor inputs
    • Fuel level sensor (provided by Meitrack)
    • Simulated geozone/geofence arrive/depart events
    • Simulated GPIO input events
    • Estimated odometer calculation
    Note: When used with Meitrack devices, we recommend also purchasing the RedView CT-04 DCS below.
  • Oner Electronics Technology Limited / Meitrack / RedView CT-04 [DCS Manual]
    • Meiligao VT300, etc. (when using the RedView CT-04 protocol)
    • Oner Electronics Technology Limited CT04
    • RedView CT-04
    Supported Features:
    • Receive data via TCP/UDP
    • Analog sensors (fuel level monitors)
    • Simulated geozone/geofence arrive/depart events
    • Simulated GPIO input events
    • Estimated odometer calculation
  • SIMCom VL2000
    • VL2000 (personal tracker)
    Supported Features:
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
    • Sending commands to the device via UDP or SMS (with available SMS gateway)
  • SIMCom Prime AT-Lite
    • Prime AT-Lite (personal tracker)
    Supported Features:
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
    • Sending commands to the device via UDP or SMS (with available SMS gateway)
  • QinetiQ
    • S100 (personal tracker)
    • T100
    Supported Features:
    • Receive data via TCP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
    • RFID tag support
  • Quectel/SIMCom GL100 [DCS Manual]
    • GL100 (also sold as "Spark Nano", "Enduro", "SIMCom eLoc", "Queclink GL100", etc) (personal tracker)
    Supported Features:
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
    • Sending commands to the device via UDP or SMS (with available SMS gateway)
  • Queclink GL200/GL300 [DCS Manual]
    • GL200 (personal tracker)
    • GL300 (personal tracker)
    Supported Features:
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
    • Sending commands to the device via UDP or SMS (with available SMS gateway)
  • Queclink GL500 [DCS Manual]
    • GL500 (personal tracker)
    Supported Features:
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
    • Sending commands to the device via UDP or SMS (with available SMS gateway)
  • Queclink GV55
    • GV55 (vehicle tracker)
    Supported Features:
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
    • Sending commands to the device via UDP or SMS (with available SMS gateway)
  • Queclink GV75
    • GV75 (vehicle tracker)
    Supported Features:
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
    • Sending commands to the device via UDP or SMS (with available SMS gateway)
  • Queclink GV100
    • GV100 (vehicle tracker)
    Supported Features:
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
    • Sending commands to the device via UDP or SMS (with available SMS gateway)
  • Queclink GV200
    • GV200 (vehicle tracker)
    Supported Features:
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
    • Sending commands to the device via UDP or SMS (with available SMS gateway)
  • Queclink GV300
    • GV300 (vehicle tracker)
    Supported Features:
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Simulated GPIO input events
    • Estimated odometer calculation
    • Supports Anti-Carjacking feature
    • Sending commands to the device via UDP or SMS (with available SMS gateway)
  • Queclink GV500
    • GV500 (OBDII plug-in vehicle tracker)
    Supported Features:
    • Capture Engine Diagnostic OBDII data
    • Capture Engine Fault Codes (DTC)
    • Supports Impact Reconstruction data capture
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
    • Sending commands to the device via UDP or SMS (with available SMS gateway)
  • Queclink GV600
    • GV600
    Supported Features:
    • Supports Impact detection
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
    • Sending commands to the device via UDP or SMS (with available SMS gateway)
  • Queclink GT300
    • GT300 (personal tracker)
    Supported Features:
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
    • Sending commands to the device via SMS (with available SMS gateway)
    • Supported GT record types: EST,SOS,RTL,MSA,BND,MNR,PBA,GEO,TRI,LGL
  • Queclink GT500
    • GT500 (personal tracker)
    Supported Features:
    • Receive data via TCP/UDP/WiFi
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
    • Sending commands to the device via UDP or SMS (with available SMS gateway)
  • (Sanav) San Jose Technology, Inc.
    • GC-101 (personal tracker)
    • CT-24 (personal tracker)
    • MU-201 (personal tracker)
    • GS-818 (vehicle tracker)
    • CT-58 (vehicle tracker)
    Supported Features:
    • Included with the basic GTS Enterprise
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
    • Sending commands to the device via SMS (with available SMS gateway)
  • Sendum Wireless Corporation
    • PT300 (in development)
    Supported Features:
    • CDMA
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
  • Sierra Wireless
    • AirLink RAP
    Supported Features:
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
    • Supported packet types: 0xE1, 0xF1, 0xF8
  • Spetrotec Ltd.
    • BigWatcher
    Supported Features:
    • Estimated odometer calculation
  • Stars Navigation Tech, Ltd.
    • Rover9 (in development)
    Supported Features:
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
    • Sending commands to the device via SMS (with available SMS gateway)
  • Systems and Technology Corp.
    • IntelliTrac A1 (in development)
    Supported Features:
    • Receive data via TCP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
  • Systems and Technology Corp.
    • IntelliTrac X1 (in development)
    Supported Features:
    • Receive data via TCP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
  • Suntech
    • ST215/ST240
    • ST300SI/ST300H/ST300A/ST300R/ST300B/ST300V/ST300C/ST300K/ST300P/ST300F/ST300D
    • ST340/ST340LC/ST340R/ST350
    • ST500
    • ST600R/ST600V/ST630/ST640/ST650/ST690/ST600R2/ST690/STU690
    • ST910/ST940
    Supported Features:
    • Receive data via UDP/TCP
    • J1939/CANBUS/OBDII
    • Simulated geozone/geofence arrive/depart events
    • Actual/Estimated odometer calculation
  • Teltonika FMxxxx [DCS Manual]
    • FM1010 (OBDII)
    • FM1100
    • FM1110
    • FM1120
    • FM1122
    • FM1202
    • FM1204
    • FM3400
    • FM5300
    • FM5500
    Supported Features:
    • Receive data via TCP/UDP
    • 4 Analog sensor inputs
    • CANBUS data fields
    • RFID/iButton tag support (stored as a tag ID)
    • Multiple events per UDP packet
    • Acceleration data field
    • Temperature data fields
    • Simulated geozone/geofence arrive/depart events
    • Simulated GPIO input events
    • Estimated odometer calculation
    • Sending commands to the device via SMS (with available SMS gateway)
  • Teltonika GH3000/GH4000 [DCS Manual]
    • GH3000/GH4000 (personal tracker)
    Supported Features:
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
    • Sending commands to the device via SMS (with available SMS gateway)
  • Trimble
    • TrimTrac
  • TZone
    • TZ-AVL05
    Supported Features:
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
    • Status Codes: Panic, Button-A, Shutdown, Low-Battery, Over-Speed, Parked, Suspend, Resume.
    • Digital inputs
    • Analog inputs
    • RFID tag support
  • TZone
    • TZ-AVL08
    Supported Features:
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
    • Status Codes: Panic, Button-A, Shutdown, Low-Battery, Over-Speed, Parked, Suspend, Resume.
    • Digital inputs
    • RFID tag support
  • ULBOtech T36x/T37x/etc.
    • OBD Plug'n'Play
    Supported Features:
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
    • OBDII data
  • WebTech Wireless
    • Limited WTW Protocol support
  • Wireless Links (Piccolo)
    • Piccolo ATX
    • Piccolo STX
    • Piccolo C-2020 (CANBUS)
    Supported Features:
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
    • RFID tag support
    • CANBUS support (C-2020)
  • Wonde Proud
    • SPT100 (personal tracker)
  • Xexun
    • TK102 (personal tracker)
    • TK103
    Supported Features:
    • Included with the basic GTS Enterprise
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
  • Xirgo Technologies, LLC [DCS Manual]
    • XT-2000 (OBDII)
    • XT-2050 (OBDII)
    • XT-2150 (OBDII)
    • XT-4000 (J1939/J1708)
    • etc.<.li>
    Supported Features:
    • Receive data via TCP/UDP
    • Simulated geozone/geofence arrive/depart events
    • Estimated odometer calculation
    • Sending commands to the device via UDP or SMS (with available email to SMS gateway)



Feature Comparison Chart

The following chart compares the features available in the various available modules and add-ons.
(See Notes [#] below where indicated, for additional information)

Feature Open-Source
OpenGTS®
Basic GTS
Enterprise
Event
Notification
Rules Engine
State-Line
Border
Crossing
1)  General
a)  Web-based User Interface Yes Yes -- --
b)  Customizable Look-and-Feel Yes Yes -- --
c)  Geofence Arrive/Depart detection Yes Yes -- --
d)  "Events" Servlet for GoogleEarth KML Support Yes Yes -- --
e)  Access-Control-List (ACL) Support Yes Yes -- --
f)  International Support Yes Yes -- --
g)  Source Code Included Yes Yes -- --
h)  Secure Web-Access (SSL) Yes [#1] Yes [#1] -- --
i)  Server Auto Start on Reboot (Fedora) -- Yes -- --
j)  "Cron" based Task Server -- Yes -- --
k)  System "Offline" Support -- Yes -- --
l)  XML-based Web Service Support -- Yes -- --
m)  Mobile Friendly Web Login -- Yes [#9] -- --
n)  'Stay Logged In' feature -- Yes -- --
2)  Device Communication Servers (DCS)
b)  OpenDMTP compliant devices Yes Yes -- --
h)  Aspicore TC/UDP-based Yes Yes -- --
i)  Sanav HTTP-based server (GC-101/GX-101) Yes Yes -- --
c)  TK102/TK103 TCP/UDP-based Yes [#7] Yes [#7] -- --
d)  Aspicore GSM Tracker Yes Yes -- --
e)  Example 'Template' Yes Yes -- --
f)  "GPRMC" HTTP-based Yes Yes -- --
g)  "GPSMapper" HTTP-based server Yes Yes -- --
h)  "Mologogo" HTTP-based server Yes Yes -- --
i)  TAIP (Trimble ASCII Interface Protocol) server Yes Yes -- --
j)  Sanav TCP/UDP-based server -- Yes -- --
k)  Other servers available -- Yes [#2] -- --
l)  Starter disable/enable -- Yes [#3,#6] -- --
m)  Fuel Level Monitoring -- Yes [#3,#6] -- --
n)  RFID Tag Tracking -- Yes [#3,#6] -- --
3)  Mapping
a)  Vehicle Location Map Yes Yes -- --
b)  Fleet/Group Location Map Yes Yes -- --
c)  Customizable Pushpins Yes Yes -- --
d)  Per Vehicle Pushpins on Fleet Map Yes Yes -- --
e)  Pushpin Info Balloons with Lat/Lon, Speed, Heading ,etc. Yes Yes -- --
f)  Selectable Map Providers Yes Yes -- --
g)  Date/Time Range Selection Yes Yes -- --
h)  Pushpins showing direction of travel Yes Yes -- --
i)  Pushpins showing device name label Yes Yes -- --
j)  Auto-Update Yes Yes -- --
k)  Replay vechicle travel Yes Yes -- --
l)  Export to Google Earth Yes Yes -- --
m)  Point-Radius geofences Yes Yes -- --
n)  Polygon geofences Yes Yes -- --
o)  Colorized geofences Yes Yes -- --
p)  Display geofences on Device/Fleet Map Yes Yes -- --
4)  Reverse-Geocoding
a)  Confgurable Reverse-Geocoders Yes Yes -- --
5)  Report Output Formats and Options
a)  HTML Yes Yes -- --
b)  HTML - Sortable Table Columns Yes Yes -- --
c)  CSV - Comma Separated Values Yes Yes -- --
d)  XML Yes Yes -- --
e)  Email reports Yes Yes -- --
f)  XLS - Spreadsheet -- Yes -- --
6)  Vehicle Detail Reports
a)  Vehicle Event Detail Yes Yes -- --
b)  Vehicle Trip Report Detail -- Yes -- --
c)  Vehicle Geozone/Geofence Elapsed Time Detail -- Yes -- --
d)  Vehicle Geozone/Geofence Driving Summary -- Yes -- --
e)  Vehicle Ignition-On Elapsed Time Detail -- Yes -- --
f)  Temperature Monitoring and Graphing -- Yes -- --
7)  Fleet Detail Reports
a)  Vehicle Event Detail (by Group) Yes Yes -- --
b)  Vehicle Excess Speed (by Group) Yes Yes -- --
c)  Vehicle Trip Report Detail (by Group) -- Yes -- --
d)  Vehicle Geozone Detail (by Group) -- Yes -- --
8)  Fleet Summary Reports
a)  Last Known Vehicle Location Yes Yes -- --
b)  Number of Received Events Yes Yes -- --
c)  PowerUp/Reboot Initialization Yes Yes -- --
d)  Ignition-On Elapsed Time Summary -- Yes -- --
e)  Session Connection Statistics -- Yes -- --
f)  Periodic Vehicle Maintenance -- Yes -- --
g)  Vehicle Distance Traveled -- Yes -- --
h)  User Login Audit -- Yes -- --
i)  Fuel Summary Report -- Yes [#3,#6] -- --
j)  Driver Report -- Yes -- --
k)  Driver Expired License -- Yes -- --
l)  (SysAdmin) Unassigned Devices -- Yes -- --
m)  (SysAdmin) Account Last Login -- Yes -- --
9)  Performance Reports
a)  Excess Speed Yes Yes -- --
b)  Driving/Stopped Time Yes Yes -- --
10)  Administration Web-Interface
a)  Account Administration Yes Yes -- --
b)  User Administration Yes Yes -- --
c)  Device/Vehicle Administration Yes Yes -- --
d)  Group/Fleet Administration Yes Yes -- --
e)  Geozone/Geofence Administration Yes Yes -- --
f)  Change Password Yes Yes -- --
g)  Role (ACL) Administration -- Yes -- --
h)  StatusCode Description Administration -- Yes -- --
i)  Look-and-Feel Administration -- Yes -- --
j)  System Admin Account Manager -- Yes -- --
k)  System Admin System Info -- Yes -- --
l)  System Admin Find Assigned Mobile IDs -- Yes -- --
11)  Rule-based Event Notification
a)  RulesEngine Event Notification -- Yes [#4] Yes --
b)  Send Emails on Event Triggers -- Yes [#4] Yes --
c)  Panic Button Notification -- Yes [#4] Yes --
c)  Event Context Notification -- Yes [#4] Yes --
d)  Selected Status Code Notification -- Yes [#4] Yes --
e)  Excessive Speed Notification -- Yes [#4] Yes --
f)  Exceeding Posted Speed Limit Notification -- -- Yes [#5] --
g)  Engine Fault Notification -- -- Yes [#3,#6] --
h)  Periodic Maintenance Notification -- -- Yes --
i)  Custom Alert Monitoring -- -- Yes --
j)  Full Rule Selector Definitions -- -- Yes --
k)  Event Notification Queue -- -- Yes --
l)  Event Notification Callback Support -- -- Yes --
m)  Rule Administration Web Interface -- -- Yes --
n)  Map Icon Selection based on Event Type -- -- Yes --
o)  GeoCorridor (route-based) geofencing -- -- Yes --
12)  State Borderline-Crossing Detection
a)  State-Line Border Crossing Detection Database/Server -- -- -- Yes
b)  State Border Crossing Summary Report -- -- -- Yes
c)  State Mileage Summary Report -- -- -- Yes
13)  Supported Operating System Platforms
a)  Runs On Linux (Fedora 12 / 13 /14 preferred) Yes Yes Yes Yes
b)  Runs On FreeBSD Yes Yes Yes ?
b)  Runs On OpenBSD Yes Yes Yes ?
c)  Runs On Mac OS X Yes Yes Yes --
d)  Runs On Windows Yes Yes Yes --
14)  Pricing and other Services
a)  Price Free (note 8) (note 8) (note 8)
b)  Remote Installation Available (via ssh) -- (note 8) (note 8) (note 8)
c)  Hosted Solution Available -- (note 8) (note 8) (note 8)
d)  Customization Services Available -- (note 8) (note 8) (note 8)
Notes:
1 - Requires Tomcat SSL configuration.
2 - Other add-on servers available for additional fee.
3 - Depending on selected device commuication server add-on.
4 - Using "RuleFactoryLite" only (utilizing rules hardcoded in Java).
5 - Special Geonames/Navteq reverse-geocoder is required.
6 - Special hardware support may be required.
7 - Supports most TK102/TK103 devices (some manufacturers use a non-standard TK102/TK103 protocol).
8 - Contact us for details.
9 - See Mobile "Demo Login" below.




Other Supported Features

Here are few other additional custom features and modules we can provide for specific GPS tracking/telematic application requirements:
  • State-line border crossing detection:
    For I.F.T.A. fuel tax reporting, supports detection of state border crossings (city, county/province, country, also possible with the proper shapefiles). Currently supports US states, Canada provinces, and Mexico states, however, with the proper shapefiles, other geographical areas could be supported as well.
  • Support for trailer drop/hook detection:
    (available only on selected client hardware). This feature provides reporting of which trailers are hooked to a truck, and where they were disconnected/dropped. Special hardware is required that can detect when a trailer has been atached, or detached, from the truck.
  • Support for truck J1708 / J1587 / J1939 monitoring and engine disagnostics:
    (available only on selected client hardware). Engine data buss monitoring allow collection of engine disagnostic information, such as actual vehicle odometer, RPM, fuel used, fault codes, etc.
  • Support for load temperature monitoring:
    (available only on selected client hardware). Temperature monitoring for refrigerated compartments, etc.
  • Customized client telematic device integration:
    Integration of features such as driver notification, Bluetooth/WiFi connectivity, specialized telematic data collection, legacy system integration, video system integration, tire pressure monitoring, etc.
  • Additional commercial mapping provider and reverse-geocoding support:
    Including MapTuit, MultiMap, NacGeo, and others.
  • Secure GeoCorridor support:
    (available only on selected client hardware). For high-value loads, this provides route monitoring from one location to another. If the vehicle deviates from the route an alert event is sent, or if the vehicle dwells/stops too long in the route an alert event is sent.
  • Support for other custom requirements:
    We can help with the integration of the tracking/telematic data into legacy systems, or help with the development of other specific telematic requirements.
  • Continuing upgrade support and maintenance:
    We can provide continued upgrade support and maintenance to meet you specific requirements.


Demo Login

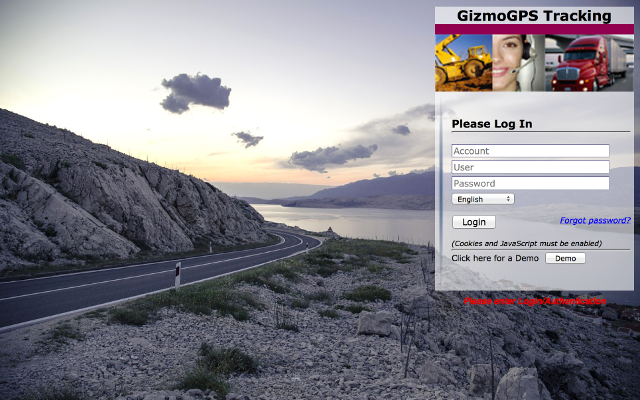

Click to view the new GTS Enterprise Demo login:

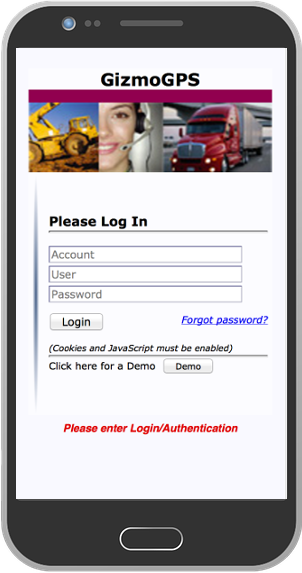

Click to view the new GTS Enterprise Mobile-Friendly Demo login, or scan the QR code below:

http://mobile.gizmogps.com/track1/Track




We can help you design a system that fits your specific requirements. Please contact us for additional information or assistance with your custom GPS tracking and telematic project. We have a team ready to assist you. Contact us at projects@geotelematic.com


Copyright(C) 2007-2022 GeoTelematic® Solutions, Inc., All Rights Reserved
